The DICS series controller provides a simple and easy-to-use operating interface for all pneumatic tools, allowing torque to be set through mechanical knobs or buttons, making operation simpler and more convenient. It is applicable for pneumatic wrenches from various manufacturers, with a torque range of 3-1,375N.m;
|
Model
|
Operating Torque (N.m)
|
Drive Shaft (Inch)
|
No-Load Speed (Rpm)
|
Pneumatic Pipe Dimensions (mm)
|
Vibration a/k* (m/s²)
|
Air inlet Thread (Inch)
|
Noise Level (dbA)
|
Air Consumption (L/min)
|
Weight (Kg)
|
|
DAIW-002 |
4-20 |
1/4" |
10000 |
10 |
4.8/0.9 |
1/2" |
85 |
60 |
0.63 |
|
DAIW-007 |
13-65 |
3/8" |
10000 |
10 |
4.9/1.0 |
1/2" |
85 |
60 |
0.65 |
|
DAIW-012 |
23-115 |
3/8" |
8000 |
10 |
7.6/1.2 |
1/2" |
90 |
102 |
1.1 |
|
DAIW-02 |
45-225 |
1/2" |
8000 |
10 |
9.1/1.4 |
1/2" |
90 |
102 |
1.2 |
|
DAIW-03 |
56-280 |
1/2" |
8000 |
10 |
8.6/1.3 |
1/4" |
92 |
144 |
1.9 |
|
DAIW-032 |
50-250 |
1/2" |
8000 |
10 |
8.6/1.3 |
1/4" |
92 |
144 |
2 |
|
DAIW-06 |
110-550 |
3/4" |
6500 |
13 |
11.1/1.5 |
3/8" |
93 |
228 |
3.25 |
|
DAIW-066 |
100-500 |
3/4" |
6500 |
13 |
11.1/1.5 |
3/8" |
93 |
228 |
3.95 |
|
DAIW-08 |
156-780 |
1" |
8000 |
13 |
8.6/1.3 |
3/8" |
94 |
390 |
10.9 |
|
DAIW-086 |
150-750 |
1" |
8000 |
13 |
8.3/1.3 |
3/8" |
94 |
390 |
12.4 |
|
DAIW-10 |
210-1050 |
1" |
8000 |
13 |
8.3/1.3 |
3/8" |
94 |
500 |
15.4 |
|
DAIW-18 |
340-1700 |
1-1/2" |
3600 |
13 |
9.3 |
3/8" |
94 |
600 |
18 |

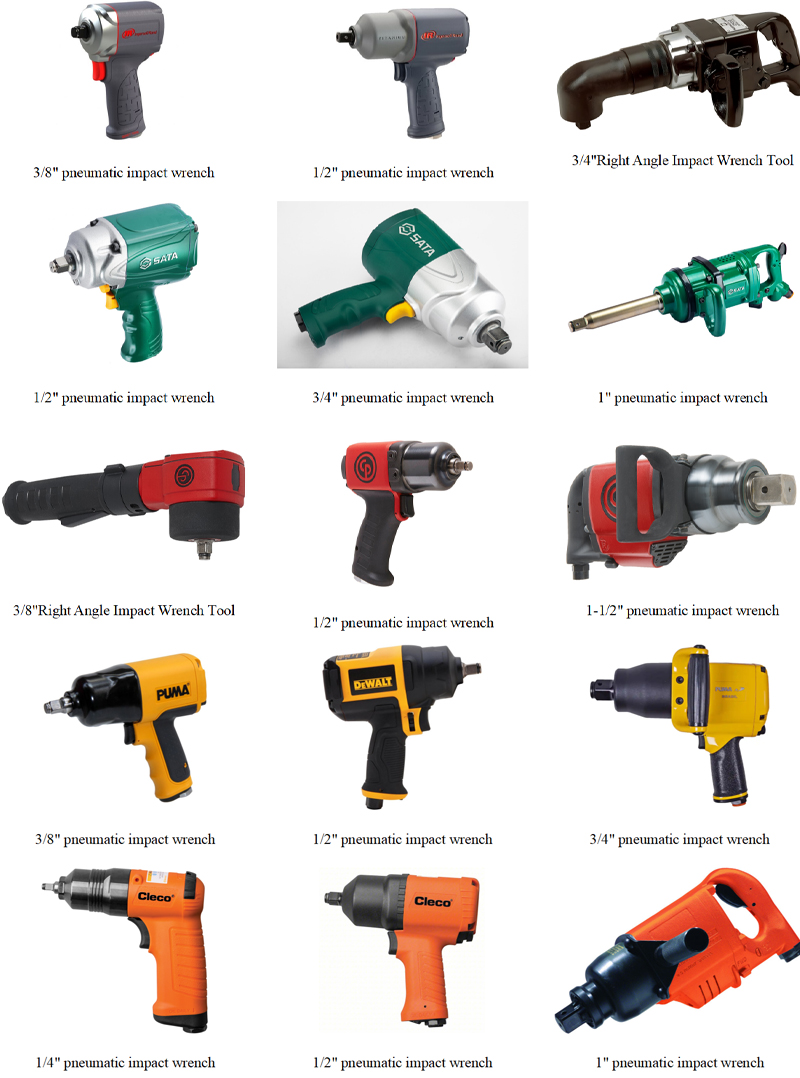

Can be matched for it (not a case study, images only for display purposes)
