Digital Impact Cordless Torque Wrenches

Related Introduction

Standard configuration includes 2 pieces of 18V, 5Ah lithium batteries, and a fast charger that can be completed in 60 minutes, and optional configuration includes 8.0Ah and 12.0Ah batteries;

Brushless motors are applicable for low explosion-proof situations and have strong and long-lasting power;

The lightweight composite material body can absorb vibrations well and also protect handle from cold damage, with light weight and high efficiency;

High torque without the need for a reaction arm, with strong spatial applicability;

The factory accuracy reaches ±5%. The repeatability accuracy is ±3%, and the accompanying traceability torque verification report is provided;

It will automatically stop when the set torque is reached, and the tightening result is informed by visual signal light and buzzer;

The counter calculates the number of times it has been used in real-time, making it clear whether maintenance is needed immediately;

Standard configuration: torque, bolt, and gear preset modes;

The body can store 10,000 pieces of fastening data, which can be connected to the device through Type-C to monitor and export fastening data (workstation, operator, torque, and date), and achieve reversible data query;

Optional: Wireless communication module can be added to connect to the upper computer or APP;

Model	Operating Torque (N.m)	No-load Speed (Rpm)	Drive Shaft (Inch)	Length (mm)	Height (mm)	Impact Rate (ipm)	Noise Level (dbA)	Weight (Kg)
IBTW005	13-65	2400	3/8"	153	153	3200	96	1.5
IBTW01	28-140	2400	1/2"	153	153	3500	96	1.9
IBTW02	50-250	1800	1/2"	245	245	2100	101.5	3.3
IBTW03	65-330	1800	3/4"	255	255	2400	101.5	3.6
IBTW04	90-450	1650	1"	353	353	2500	96	5.0

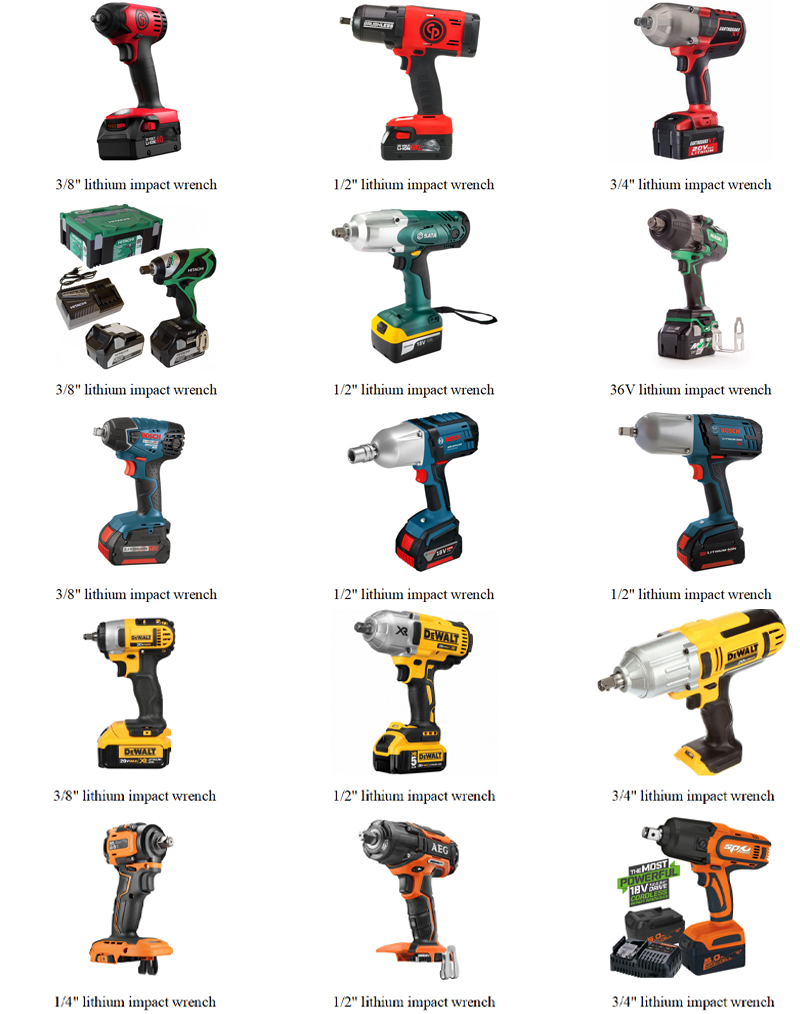

Lithium battery impact wrench with added digital display control (not a case study, images only for display purposes)
