Offset Drives

Related Introduction

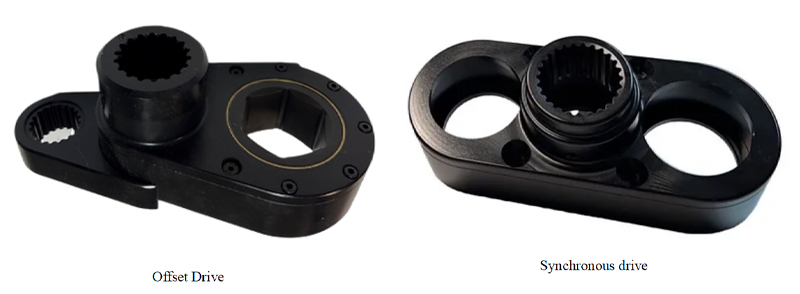

Offset Drive (integrated type)

Used in conjunction with electric and pneumatic torque wrenches and multipliers, with a bias ultra-thin design, applicable for axial space limited working conditions;

With hollow structure, it can be used in situations where bolts extend longer or height space is limited;

It is made of high-strength alloy materials, which is sturdy and durable, with a high-precision transmission system to ensure smooth and accurate transmission;

Integrated structure is adopted, with higher strength and lighter weight;

It is equipped with torque amplification function, customizable length/width/thickness/center distance, etc.;

Model	Maximum Torque (N.m)	Applicable Scope AF(mm)	Input Drive Shaft D(Inch)	Tooth Drum Diameter (mm)	A （mm）	E （mm）	H （mm）	Weight (Kg)
ITOD01	1500	17-36	3/4″或1″	60/76	120	27	68	2.0
ITOD02	3000	30-60	3/4″或1″	76	140	32	68	2.5
ITOD04	6000	41-80	1″或1-1/2″	88/96	160	42	82	3.5
ITOD08	12000	50-90	1-1/2″	122	180	52	100	4.5

Offset Drive (split type)

Used in conjunction with electric and pneumatic torque wrenches and multipliers, with a bias ultra-thin design, applicable for axial space limited working conditions;

With hollow structure, it can be used in situations where bolts extend longer or height space is limited;

It is made of high-strength alloy materials, which is sturdy and durable, with a high-precision transmission system to ensure smooth and accurate transmission;

Capable of quickly replacing the work head without the need for special tools;

It is equipped with torque amplification function, customizable length/width/thickness/center distance, etc.;

Model	Maximum Torque (N.m)	Applicable Scope AF(mm) （mm）	Input Drive Shaft D(Inch) （Inch）	Tooth Drum Diameter (mm) （mm）	A （mm）	E （mm）	H （mm）	Weight (Kg) （Kg）
STOD01	1500	17-36	3/4″或1″	60/76	120	32	68	3.0
STOD02	3000	30-60	3/4″或1″	76	140	36	68	3.5
STOD04	6000	41-80	1-1/2″	88/96	160	46	82	4.5
STOD08	12000	50-90	1-1/2″	122	180	57	100	6.3

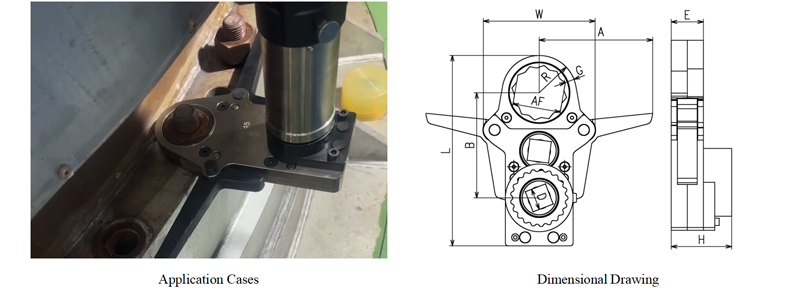

Detailed dimensions：

OD01				OD02				OD04				OD08
Working head model	W mm	R mm	G mm	Working head model	W mm	R mm	G mm	Working head model	W mm	R mm	G mm	Working head model	W mm	R mm	G mm
OD01-17	100	25	7	OD02-30	120	32	12	OD04-41	135	39	15	OD08-50	158	45	17
OD01-19	100	25	7	OD02-32	120	32	11	OD04-46	135	42	15	OD08-55	158	47	18
OD01-22	100	25	7	OD02-34	120	35	11	OD04-50	135	44	15	OD08-60	158	52	17
OD01-24	100	25	7	OD02-36	120	37	10	OD04-55	135	46	14	OD08-65	158	55	17
OD01-27	100	25	7	OD02-41	120	37	10	OD04-60	135	50	15	OD08-70	158	55	17
OD01-30	100	28	7	OD02-46	120	39	10	OD04-65	135	53	15	OD08-75	158	58	17
OD01-32	100	28	8	OD02-50	120	43	11	OD04-70	135	56	15	OD08-80	158	62	16
OD01-34	100	31	8	OD02-55	120	43	11	OD04-75	135	59	15	OD08-85	158	66	16
OD01-36	100	31	8	OD02-60	120	46	11	OD04-80	135	61	15	OD08-90	158	69	17
