Lightweight Planetary Gearboxes

Related Introduction

Precision planetary gear reduction mechanism is adopted with compact structure, which is sturdy and durable;

Excellent transmission efficiency, multiple speed ratios, covering a torque range of 100-12,000Nm, with repeatability up to ±3%;

Mechanical damping system, improving operational convenience and safety;

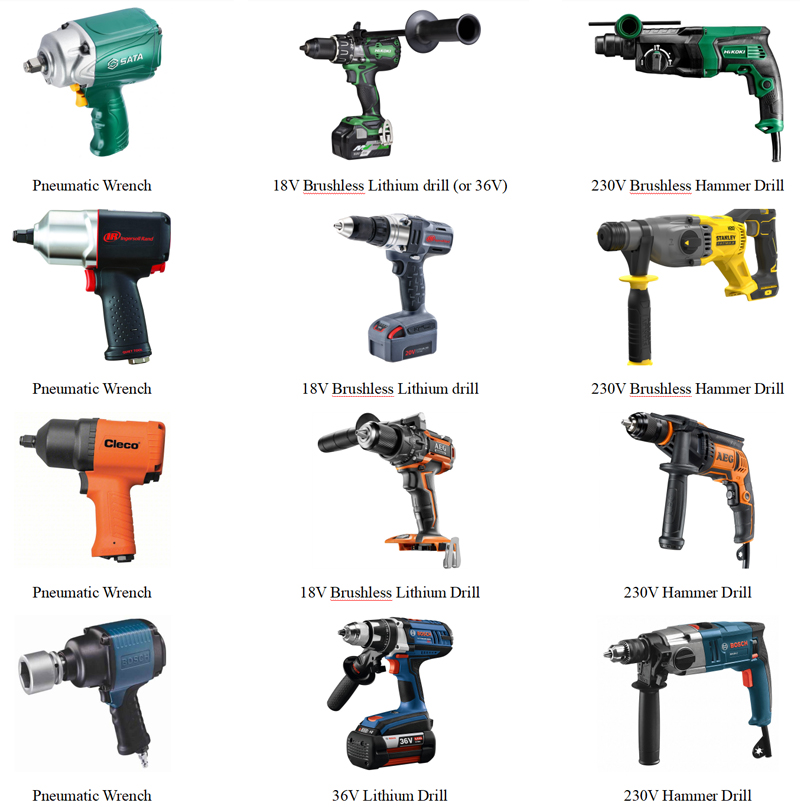

Capable of carrying multiple brand power tools, easily achieving precise torque control, and providing customized solutions for a series of overall tools;

Capable of providing customized services for other specifications of transmission ratios;

Model	Output Torque (N.m)	Input Square Drive S(Inch)	L1 （mm）	L2 （mm）	D （mm）	A （mm）	B （mm）	C （mm）	Weight (Kg)
LPG07	700	1/2	130	162	60	34	47	100	2.1
LPG12	1200	3/4	155	187	75	60	55	110	2.3
LPG25	2500	1	181	213	75	70	75	150	3.6
LPG40	4000	1	197	229	88	85	78	160	4.9
LPG50	5000	1-1/2	213	245	96	85	78	160	6.0
LPG60	6000	1-1/2	213	245	96	85	78	160	6.0
LPG80	8000	1-1/2	249	281	122	91	83	180	7.5
LPG100	10000	1-1/2	249	281	122	91	83	180	7.6
LPG120	12000	1-1/2	249	281	122	91	83	180	7.7
