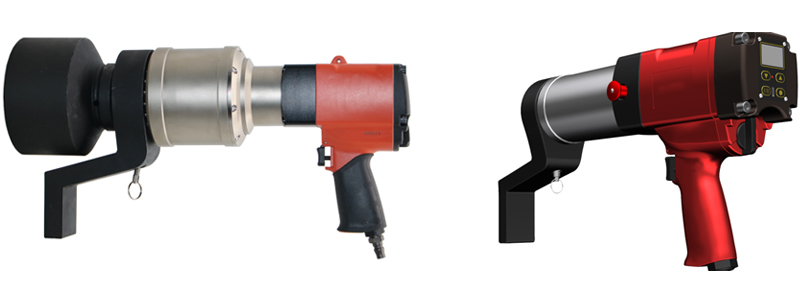

Pneumatic Torque Wrenches

Related Introduction

Lightweight, 7-blade high-performance pneumatic motor with high efficiency;

The power system can rotate 360 degrees, and the memory-type mechanical locking system has no reactive force acting on the handle, which can prevent personal injury caused by mechanical failure;

Low noise, non-impact type, and low vibration frequency ensure safe and comfortable tool use;

Spring type reaction arm can be quickly removed and replaced, improving work efficiency;

The factory accuracy reaches ±5%. The repeatability accuracy is ±3%, and the accompanying traceability torque verification report is provided;

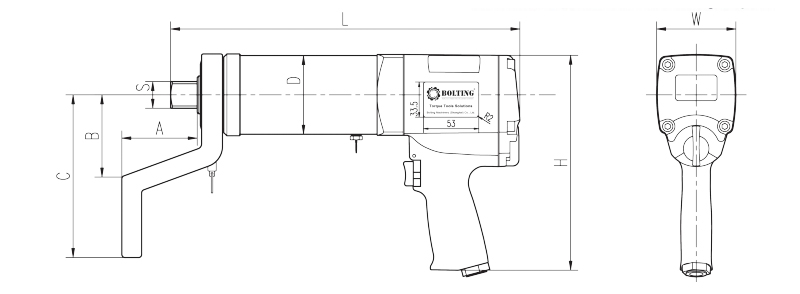

Model	Torque (N.m)	Drive Shaft S(Inch)	No-Load Speed (Rpm)	L （mm）	H （mm）	D （mm）	A （mm）	B （mm）	C （mm）	Weight (Kg)
PTW05	100-500	3/4″	31.6	295	210	75	50	54	110	6.1
PTW08	160-800	3/4″	20.2	315	210	88	65	65	130	6.5
PTW18	360-1800	1″	8.9	340	210	75	75	75	150	7.5
PTW25	500-2500	1″	8.9	340	210	75	75	75	150	8.5
PTW30	600-3000	1″	6.6	350	210	88	80	83	160	8.9
PTW40	800-4000	1″	4.7	360	210	95	80	83	160	12.5
PTW50	1000-5000	1-1/2″	4.7	360	210	95	80	83	160	12.7
PTW60	1200-6000	1-1/2″	3.6	375	210	122	90	90	180	14.8
PTW80	1600-8000	1-1/2″	2.4	460	210	139	100	95	200	16.8
PTW100	2000-10000	1-1/2″	2.2	465	210	139	100	95	200	16.9
PTW120	2400-12000	1-1/2″	1.7	465	210	139	100	95	200	17.2
