Single acting design with manual piston retraction;
Model
Bolt Diameter
Max. Load(Kn)
Area

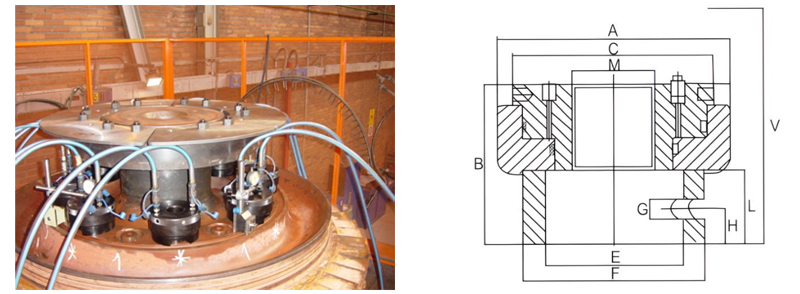

Dimension(mm)
Stroke
(mm)
(Inch)
A
B
C
E
F
G
H
L
GRHT18
M18
3/4"
188
1256
70
75
65
45
60
6
8
29
8
GRHT24
M24
1"
225
1500
80
75
70
50
68
6
10
35
8
GRHT27
M27
1-1/8"
286
1906
90
87
80
55
75
8
13
38
8
GRHT30
M30
1-1/4"
319
2125
95
87
85
59
79
8
16
42
8
GRHT36
M36
1-3/8"
427
2845
105
90
95
62
82
8
20
45
8
GRHT39
M39
1-1/2"
530
3532
110
90
100
70
88
10
22
45
8
GRHT42
M42
1-5/8"
639
4262
118
90
100
72
90
10
28
45
8
GRHT48
M48
1-7/8"
801
5341
130
100
115
80
102
10
32
51
8
GRHT56
M56
2-1/4"
1087
7245
155
115
130
95
120
12
34
60
8
GRHT64
M64
2-1/2"
1523
10151
178
130
150
107
136
12
43
67
10
GRHT72
M72
2-3/4'
2029
13528
205
150
170
120
152
14
48
11
10
GRHT80
M80
3-1/8"
2392
15944
220
165
190
135
172
14
53
85
10
GRHT90
M90
3-5/8"
3355
22364
260
185
220
153
195
20
60
95
10
GRHT100
M100
4"
3393
22619
270
205
230
165
210
20
67
105
10
GRHT105
M105
4-1/8"
4243
28287
280
215
240
175
220
20
70
110
10
GRHT110
M110
4-3/8"
4712
31416
300
225
260
180
230
20
73
115
10
GRHT125
M125
5"
5832
38877
340
255
290
205
260
25
83
130
10
GRHT140
M140
5-1/2"
7069
47124
380
285
320
230
290
30
90
145
10
GRHT150
M150
6"
8423
56156
420
310
240
247
302
30
100
157
12
GRHT160
M160
6-1/2"
9312
62080
430
320
360
255
315
35
107
167
12
(mm²)
(mm)
