Multi Stage (wind power) Hydraulic Tensioners

Related Introduction

DSH-Series Bolt Tensioners are designed for critical fastening applications in wind, steam and gas turbines;

DSH-Series Bolt Tensioners are loaded with performance enhancing features such as Auto-Retract Pistons, Cycle Counters and a premium coating to offer the ultimate in efficiency, durability and ease of use;

Auto-retract piston: Simplifies use and improves speed of operation;

Long-life puller: For maximum durability;

Long-life seals: For maximum durability and extended service life intervals;

Over-stroke indicator: Extends cylinder life by helping to prevent over-stroking of cylinder;

Optional counter: Helps indicate when maintenance is due to maximize uptime;

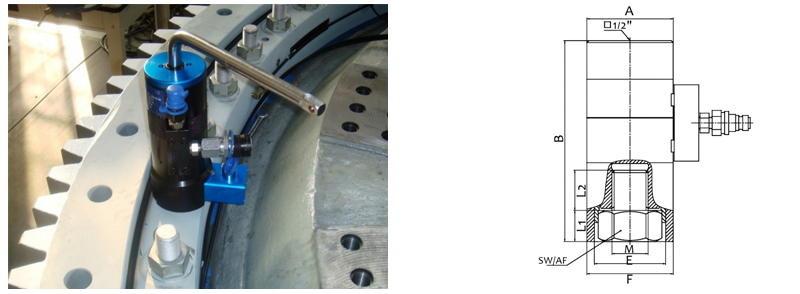

Model	Bolt Diameter		Max. Load(Kn)	Dimension(mm)						Weight (kg)	Stroke (mm)
Model	（mm）	（Inch）	Max. Load(Kn)	A	B	L1	L2	E	F	Weight (kg)	Stroke (mm)
DSHT24	M24	1"	350	60	184	22	33	44	60	5.7	8
DSHT27	M27	1-1/8"	475	65	190	25	37	56	65	6.5	10
DSHT30	M30	1-1/8″	578	74	205	28	44	62	74	7.1	10
DSHT33	M33	1-1/4″	713	80	237	31	46	67	80	7.3	10
DSHT36	M36	1-3/8″	844	90	220	34	49	72	90	8	10
DSHT39	M39	1-1/2″	1000	96	248	37	54	78	96	8.4	10
DSHT42	M42	1-5/8″	1160	96	253	40	57	84	96	9.1	10
DSHT45	M45	1-3/4″	1350	110	257	43	60	90	110	10.5	10
DSHT48	M48	1-7/8″	1525	118	261	45	62	95	118	11.8	10
DSHT52	M52	2″	1813	120	267	49	66	103	120	14	10
DSHT56	M56	2-1/4″	2094	131	290	53	70	107	131	16	10
DSHT60	M60	2-3/8″	2513	138	328	55	74	115	138	18	10
DSHT64	M64	2-1/2″	2763	148	331	59	78	121	148	23.5	10
DSHT68	M68	2-3/4″	3325	157	345	62	80	127	157	25	10
DSHT72	M72	2-7/8″	3500	168	360	65	85	131	168	28	10
