PLC Control Synchronous Hoist Systems

Related Introduction

Systems include 4,8,12,16, 24,32,40,80 Lifting points, contact Power Team for larger SJS requirements up to 128 points and manifold systems up to 512 points;

Positioning, lifting or lowering accuracy of +/- .040”(1 mm).;

Safety features included: full stop due to power failure, sensor failure, pressure overload, tolerance error, uncontrolled load movement, etc;

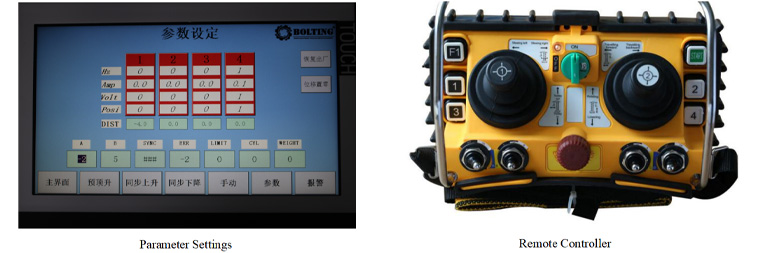

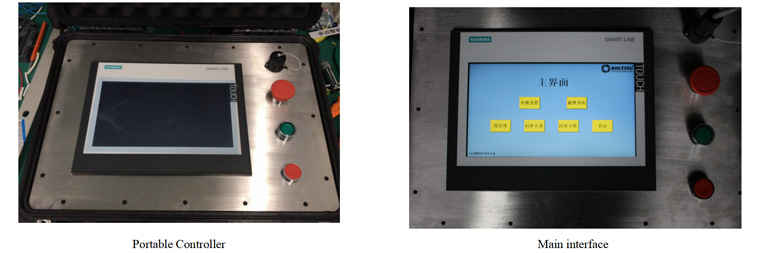

Intuitive graphic, touch screen control;

Displayed information included: startup diagnostics, position of lift points relative to starting position, pressure at each lift point, status of each cylinder and status of alarms.

SJS works with a wide range of cylinder types, tonnages and strokes to meet your application requirements;

Operating pressure (up to) 10,000 psi (700 bar);

Easy setup and remote or on-site support;

Number of Outlets	Model	Accuracy Over Full Stroke（mm）	Maximum Pressure (bar)	Flow （L/min）	Motor Voltage（V）	Motor Size（Kw）	Operating Mode
4	SJS-4	1	700	2*0.8-4	230/400	2*1.1	触摸屏
8	SJS-8	1	700	2*1-5	400	2*1.5	触摸屏
12	SJS-12	1	700	2*1-6.5	400	2*2.2	触摸屏
16	SJS-16	1	700	4*1-6.5	400	2*2.2	触摸屏
24	SJS-24	1	700	4*1-6.5	400	4*2.2	触摸屏
32	SJS-32	1	700	4*1-6.5	400	4*2.2	触摸屏
40	SJS-40	1	700	8*1-6.5	230/400	8*2.2	触摸屏
80	SJS-80	1	700	8*3-15	230/400	8*5.5	触摸屏
