Hydraulic Torque Pumps

Related Introduction

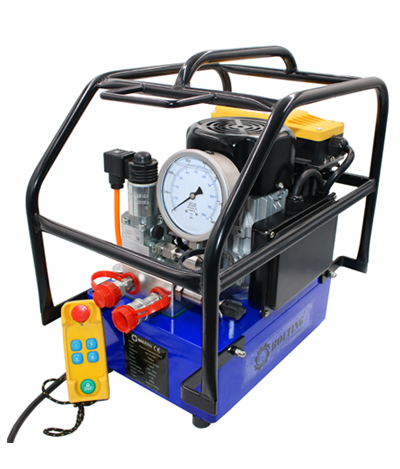

Electric Hydraulic Torque Pumps（Chinese Directional Valve）

  • Three-stage plunger pump, a cost-effective hydraulic pump;
  • Subject to brushless motor (without generating sparks) design, with low speed, good heat dissipation, it can still provide high flow at low power, equipped with hydraulic oil filter, and the hydraulic oil can be used for more than 300 hours;
  • The motor has no action and automatically stops within 30 seconds to avoid misoperation;
  • The hydraulic pump has thermal overload protection, and automatically stops when the oil temperature exceeds 80℃ to protect the pump body;
  • It is equipped with a compact frame to protect the pump body, lightweight and convenient for high-altitude operations on site;
  • 5-meter detachable remote controller for remote control operation, convenient for transportation and maintenance of pump body;
  • Lightweight, small in size, easy to carry, applicable for working conditions such as continuous work and high-altitude operations, and suitable for occasions with low explosion-proof requirements;



    • Model



    Pressure (bar)



    Flow (L/min)



    Power Supply (V)



    Power (kw)



    Capacity (L)



    Dimension (cm)



    Weight (kg)


    TP55

    700

    0.7-1.8-6.5

    110/230

    0.55

    6

    45*35*50

    23.2

    TPR55

    700

    0.7-1.8-6.5

    110/230

    0.55

    6

    45*35*50

    25.2

    TP110

    700

    1.0-3.1-8.0

    110/230

    1.1

    8

    45*35*50

    25.2

    TPR110

    700

    1.0-3.1-8.0

    110/230

    1.1

    8

    45*35*50

    28.2


    Optional four-interface splitter (model plus-4), allowing up to four hydraulic wrenches to be used simultaneously, with even output pressure;




    Smart Electric Hydraulic Torque Pumps（Chinese Directional Valve）

  • Subject to a mechanical pressure gauge and electronic LED digital display with dual closed-loop control display, the pressure unit can be selected in units such as Bar, MPa, and Psi. The LCD screen can be operated to switch units such as N.m, Ft. lbs, and the Chinese and English, metric and imperial systems can be selected for the system;
  • The dual adjustment mode of mechanical knob and button makes the operation simpler and more convenient;
  • The counter calculates the number of times it has been used in real-time, making it clear whether maintenance is needed immediately;
  • There are three standard modes to choose from: torque mode, bolt mode, and gear mode;
  • The automatic mode and manual mode can be switched at will, without the need to long press the button. The fully automatic tightening mode can be selected after only pressing once, saving time and effort;
  • The body can store 10,000 pieces of fastening data, which can be connected to the USB or mobile equipment to monitor and export fastening data (workstation, operator, torque, and date);
  • Optional: angle mode and sensor mode;
  • Optional: Wireless communication module can be added to connect to the upper computer or APP;



    • Model



    Pressure (bar)



    Flow (L/min)



    Power Supply (V)



    Power (kw)



    Capacity (L)



    Dimension (cm)



    Weight (kg)


    TP55-AI

    700

    0.7-1.8-6.5

    110/230

    0.55

    6

    45*35*50

    23.2

    TPR55-AI

    700

    0.7-1.8-6.5

    110/230

    0.55

    6

    45*35*50

    25.2

    TP110-AI

    700

    1.0-3.1-8.0

    110/230

    1.1

    8

    45*35*50

    25.2

    TPR110-AI

    700

    1.0-3.1-8.0

    110/230

    1.1

    8

    45*35*50

    28.2

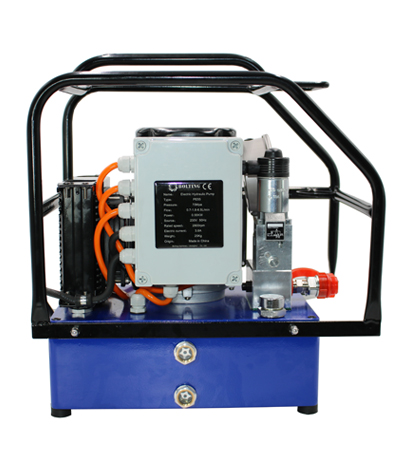

    Electric Hydraulic Torque Pumps（HAWE Directional Valve）

  • A three-stage plunger pump is commonly used, which is 2-3 times faster than a two-stage pump;
  • Subject to brushless motor (without generating sparks) design, with low speed, good heat dissipation, it can still provide high flow at low power, equipped with hydraulic oil filter, and the hydraulic oil can be used for more than 300 hours;
  • The motor has no action and automatically stops within 30 seconds to avoid misoperation;
  • It has thermal overload protection, and automatically stops when the oil temperature exceeds 80℃ to protect the pump body;
  • It is equipped with a compact frame to protect the pump body, lightweight and convenient for high-altitude operations on site;
  • 5-meter detachable remote controller for remote control operation, convenient for transportation and maintenance of pump body;
  • Lightweight, small in size, applicable for continuous and long-term work, such as high-intensity operations such as installation or repair, and applicable for occasions with low explosion-proof requirements;



    • Model



    Pressure (bar)



    Flow (L/min)



    Power Supply (V)



    Power (kw)



    Capacity (L)



    Dimension (cm)



    Weight (kg)


    PE55

    700

    0.7-1.8-6.5

    110/230/380

    0.55

    6

    40*30*40

    23.1

    PE110

    700

    1.3-3.4-8.5

    110/230/380

    1.1

    8

    43*30*42

    28.2

    PE220

    700

    1.6-5.2-12

    110/230/380

    2.2

    20

    50*33*50

    40.6

    PSE300

    700

    2.4-12

    110/230/380

    3.0

    33

    61.5*45*60

    50

    PSE450

    700

    3-15

    110/230/380

    4.5

    33

    61.5*45*60

    50

    PSE550

    700

    4-22

    110/230/380

    5.5

    33

    61.5*45*60

    50

    PSE750

    700

    6.4-5.25

    110/230/380

    7.5

    33

    61.5*45*60

    50


    Optional four-interface splitter (model plus-4), allowing up to four hydraulic wrenches to be used simultaneously, with even output pressure;

    The PES series is a customized product for servo motors.



    Smart Electric Hydraulic Torque Pumps（HAWE Directional Valve）

  • Subject to a mechanical pressure gauge and electronic LED digital display with dual closed-loop control display, the pressure unit can be selected in units such as Bar, MPa, and Psi. The LCD screen can be operated to switch units such as N.m, Ft. lbs, and the Chinese and English, metric and imperial systems can be selected for the system;
  • The dual adjustment mode of mechanical knob and button makes the operation simpler and more convenient;
  • The counter calculates the number of times it has been used in real-time, making it clear whether maintenance is needed immediately;
  • There are three standard modes to choose from: torque mode, bolt mode, and gear mode;
  • The automatic mode and manual mode can be switched at will, without the need to long press the button. The fully automatic tightening mode can be selected after only pressing once, saving time and effort;
  • The body can store 10,000 pieces of fastening data, which can be connected to the USB or mobile equipment to monitor and export fastening data (workstation, operator, torque, and date);
  • Optional: angle mode and sensor mode;
  • Optional: Wireless communication module can be added to connect to the upper computer or APP;



    • Model



    Pressure (bar)



    Flow (L/min)



    Power Supply (V)



    Power (kw)



    Capacity (L)



    Dimension (cm)



    Weight (kg)


    PE55-AI

    700

    0.7-1.8-6.5

    110/230/380

    0.55

    6

    40*30*40

    23.2

    PE110-AI

    700

    1.3-3.4-8.5

    110/230/380

    1.1

    6

    43*33*42

    28.2

    PE220-AI

    700

    2.0-5.2-12

    110/230/380

    2.2

    20

    50*33*50

    50

    PSE300-AI

    700

    2.4-12

    110/230/380

    3.0

    33

    61.5*45*60

    50

    PSE450-AI

    700

    3-15

    110/230/380

    4.5

    33

    61.5*45*60

    50

    PSE550-AI

    700

    4-22

    110/230/380

    5.5

    33

    61.5*45*60

    50

    PSE750-AI

    700

    6.4-25

    110/230/380

    7.5

    33

    61.5*45*60

    50


    Optional four-interface splitter (model plus-4), allowing up to four hydraulic wrenches to be used simultaneously, with even output pressure;

    The PES series is a customized product for servo motors.



    Explosion-protected Electric Hydraulic Torque Pump

  • 230/380V, 50/60Hz optional, equipped with hydraulic oil filter, oil circulation cooling system to ensure long-term continuous operation;
  • The power cord is 10 meters long, and the remote control handle cable is 10 meters long, which is equipped with a compact frame roller car to protect the pump body. It is lightweight and convenient for high-altitude operations on site;
  • Explosion-proof testing certification has been passed for all electrical accessories and certificates are provided;
  • It is applicable for explosion-proof applications in Zone 2, Zone 1, and Zone 0, widely used in explosion-proof environments such as dust, coal mines, petrochemicals, natural gas, etc.;
  • Protection grade IP65, overall explosion-proof grade: ExdIIBT4. Other higher explosion-proof grades can also be selected: ExdIICT4/CT5/CT6, etc.;
  • If necessary, the Company can fully cooperate in implementing the required certification work to comply with relevant laws and regulations;



    • Model



    Pressure (bar)



    Flow (L/min)



    Power Supply (V)



    Power (kw)



    Capacity (L)



    Dimension (cm)



    Weight (kg)


    TP110-4EX

    700

    0.7-1.8-6.5

    230/400

    1.1

    20

    53*50*52

    35.6

    PE110-4EX

    700

    0.7-1.8-6.5

    230/400

    1.1

    20

    53*50*52

    40.2

    PE150-4EX

    700

    1.3-3.4-8.5

    230/400

    1.5

    33

    60*53*63

    45.6

    PES300-4EX

    700

    2.4-12

    110/230/400

    3.0

    33

    61.5*45*60

    50

    PES450-4EX

    700

    3-15

    110/230/400

    4.5

    33

    61.5*45*60

    50

    PES550-4EX

    700

    4-22

    110/230/400

    5.5

    33

    61.5*45*60

    50

    PES750-4EX

    700

    6.4-25

    110/230/400

    7.5

    33

    61.5*45*60

    50


    Optional four-interface splitter (model plus-4), allowing up to four hydraulic wrenches to be used simultaneously, with even output pressure;

    The PES series is a customized product for servo motors.


    Explosion-protected Pneumatic Hydraulic Torque Pump（HAWE Directional Valve）

  • A three-stage plunger pump, commonly used, has a flow rate that is more than three times faster than a typical two-stage pump;
  • Rotary pneumatic motor, suitable for places where pneumatic energy is the preferred energy source, such as explosion-proof environments in petroleum, chemical, coal mines, etc.;
  • Compressed air in the workshop from 2bar-8bar is sufficient for operation;
  • The oil circulation cooling system can ensure long-term continuous operation;
  • It is equipped with a compact frame to protect the pump body, lightweight and convenient for high-altitude operations on site;




    • Model



    Pressure

    (bar)



    Flow

     (L/min)



    Air Consumption

     (L/min)



    Power

     (kw)



    Capacity

     (L)



    Dimension (cm)



    Weight (kg)


    PA86

    700

    0.9-2.5-7.6

    2000

    3.5

    8

    40*26*40

    30

    Optional four-interface splitter (model plus-4), allowing up to four hydraulic wrenches to be used simultaneously, with even output pressure;
