Hydraulic Couplers

Related Introduction

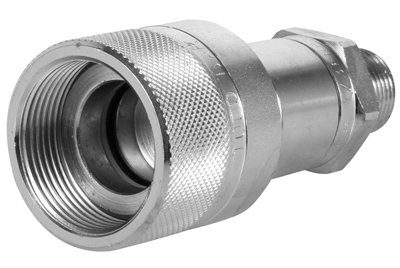

screw-to-connect couplings：

Robust screw-to-connect couplings with high flow rate and ability to withstand harsh conditions;

Compliance with ISO14540 ensures complete interchangeability with other brands following the same standard;

Higher flow performance，high flow rate capacity，high durability,Built to withstand harsh conditions;

Model

Working Pressure(bar)

Burst Pressure(bar)

Flow

(L/min)

Working Temperature

Material Coupling

Nominal Diameter(mm)

Connection

232-1/4

700

2220

16.1

-30-130

钢镀锌

1/4"NPT

232-3/8

700

1850

21.2

-30-130

钢镀锌

3/8"NPT

Quick couplings for ultra high-pressure：

All High-Pressure Hydraulic couplings and nipples are designed with a non-drip interface to minimize fluid spillage and air inclusion during connection and disconnection;

Dust caps are a standard feature to protect hydraulic systems from contaminants;

Higher flow performance，high flow rate capacity，high durability,Built to withstand harsh conditions;

Model	Working Pressure(bar)	Burst Pressure(bar)	Flow (L/min)	Working Temperature	Material Coupling	Nominal Diameter(mm)	Connection

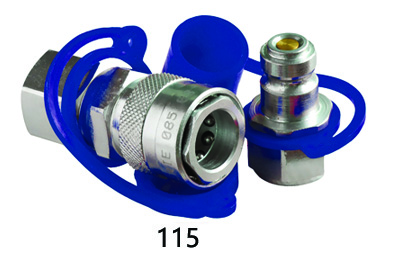

115	1000	2600	6	-30-130	钢镀锌	2.5	1/4NPT

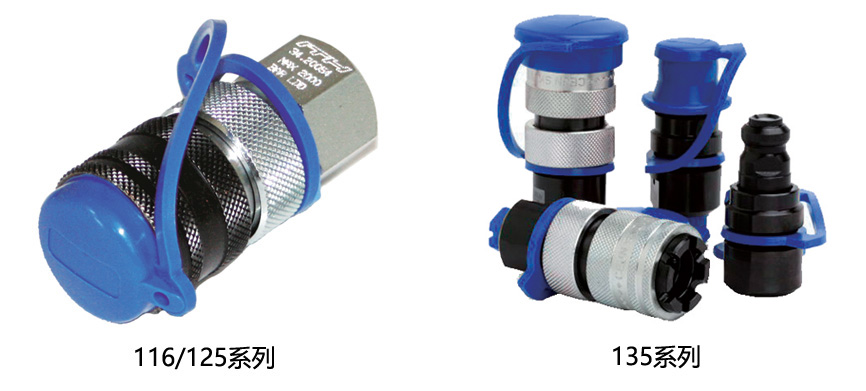

116	1500	3000	6	-30-130	钢镀锌	2.5	G1/4"
125	2500	5000	5.8	-30-130	钢镀锌	2.5	G1/4"
135	3000	6000	4.6	-30-130	钢镀锌	2.5	M16*1.5
