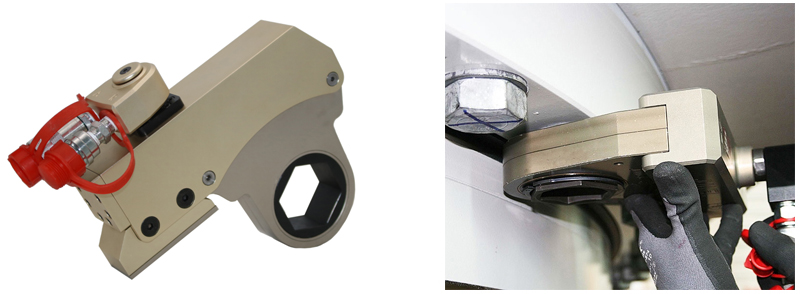

Super Thin Hydraulic Torque Wrenches

Related Introduction

70Mpa Max working pressure and the accuracy keep within ±3%;

All together 11 models with the range from 303N.m to 180000N.m, which covers the most bolts size;

Small dimensions and compact design for confined spaces;

An integrated pressure relief valve ensures a safer working environment;

Generously sized oil channels in device, provide minimal heating under continuous load;

Various inserts available as an accessory, for flexible working;

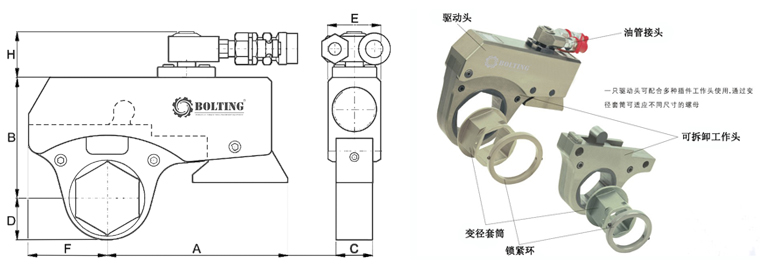

Model	Minimum Torque(N.m)	Max. Torque (N.m)	Hexagon Range(mm)	Power Head Weight (Kg)	Work Head Weight (Kg)	A (mm)	B (mm)	C (mm)	E (mm)	F (mm)
3SWT	203	2030	19-41	1.2	1.3	148	109	28	40	57
3SWT	303	3030	46-60		1.4	148	109	28	40	57
6SWT	560	5600	41-65	2.2	1.5	168	127	35	50	83
6SWT	660	6600	70-80		1.7	168	127	35	50	83
10SWT	986	9860	41-65	3.3	3.4	216	148	46	66	86
10SWT	1200	12000	70-95		3.8	216	148	46	66	86
20SWT	1850	18500	70-95	5.5	5.8	282	191	56	82	86
20SWT	2000	20000	100-115		6.8	282	191	56	82	86
30SWT	3000	30000	100-115	11.5	15.8	341	237	72	105	116
40SWT	4000	40000	115-135	12.5	16.8	341	237	72	105	116
40SWT	4509	45090	135-155		17.5	341	237	72	105	116
60SWT	6000	60000	115-165	13.8	18.9	374	265	88	130	131
70SWT	7000	70000	130-180	30	32	365	278	91.8	135	149
90SWT	9000	90000	145-210	36.8	41.6	382	275	102	150	174
130SWT	13000	130000	160-230	42.5	45.6	431	299	119	175	190
160SWT	16000	16000	185-255	66	72	482	415	142.8	210	205
180SWT	18000	180000	200-285	95.5	102	550	440	160	235	218
