Hydraulic Tensioner Pumps

Related Introduction

Light Electric Hydraulic Tensioner Pumps

The PES series hydraulic stretching pumps all use servo motors and have CNC one click operation function, which is simple and convenient;

Clear and visible pressure, equipped with self diagnosis and testing functions, automatically maintaining and supplementing pressure;

The electrical equipment is equipped with an air cooler, which can work continuously for 8 hours;

Beautiful exterior design, aluminum alloy fuel tank, easy to dissipate heat, compact size, light weight, and easy to carry;

There are multiple models available according to different needs, and they are equipped with 6L and 8L fuel tanks for easy selection;

Model	Pressure (bar)	Flow (L/min)	Power supply (V)	Power (kw)	Capacity (L)	Dimension (cm)	Weight (kg)
PEM1506	1500	0.15-3	110/230	1.1	6	35 x 25 x 40	20.1
PEM1508	1500	0.15-3	110/230	1.1	8	35 x 25 x 45	22.2
PEA1506	1500	0.15-3	110/230	1.1	6	35 x 25 x 40	20.1
PEA1508	1500	0.15-3	110/230	1.1	8	35 x 25 x 45	22.2
PES1506	1500	0.2-3.5	110/230	1.5	6	35 x 25 x 40	20.1
PES1508	1500	0.2-3.5	110/230	1.5	8	35 x 25 x 45	22.2
PES1506A	1500	0.2-3.5	110/230	1.5	6	35 x 25 x 40	21.1
PES1508A	1500	0.2-3.5	110/230	1.5	8	35 x 25 x 45	23.2
Optional four interface splitter (model plus -4), allowing up to four hydraulic stretchers to be used simultaneously, with even output pressure;

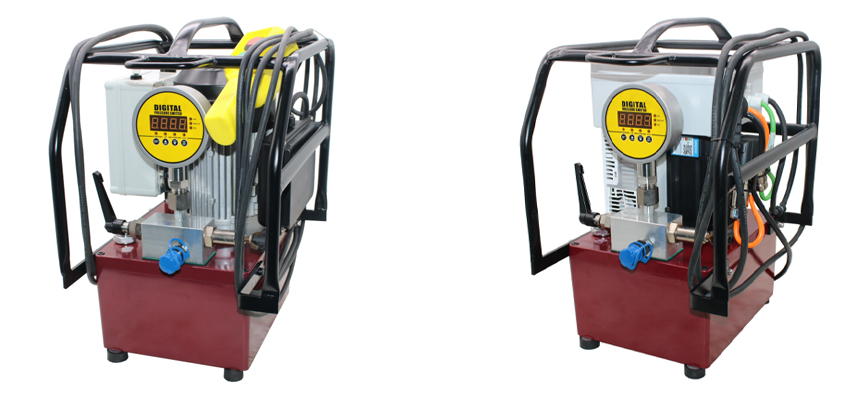

Electric Hydraulic Tensioner Pumps

The PTE series hydraulic tensioning pump adopts a brushless motor, which can still provide large flow at low power, and the hydraulic oil can be used for more than 300 hours; Equipped with a hydraulic oil filter, the hydraulic oil can be used for more than 300 hours;

Automatically shut down when reaching the set pressure to avoid misoperation, with automatic pressure replenishment function;

Equipped with a compact frame to protect the pump body, lightweight and convenient for high-altitude operations on site;

5-meter detachable remote control cable, remote control operation, convenient for transportation and maintenance of pump body;

There are multiple models available according to different needs, and they are equipped with 12L, 20L, and 33L fuel tanks for easy selection;

Model	Pressure (bar)	Flow (L/min)	Power Supply (V)	Power (kw)	Capacity (L)	Dimension (cm)	Weight (kg)
PTE20012	2000	0.1-2	110/230/380	1.1	12	38 x 25 x 40	25.2
PTE28012	2800	0.1-2	110/230/380	1.1	12	45×35×45	28.3
PTE40012	4000	0.1-2	110/230/380	1.1	12	45×35×45	30.1
PTES20020	2000	0.2-4	110/230/380	3/4.5/5.5/7.5	20	61.54560	35.2
PTES28020	2800	0.2-4	110/230/380	3/4.5/5.5/7.5	20	61.54560	38.3
PTES40020	4000	0.2-4	110/230/380	3/4.5/5.5/7.5	20	61.54560	40.3
The above are standard products. For other special requirements such as power, flow rate, and higher pressure, please contact the local authorized agency or our technical engineer; The PTES series is a customized product for high flow servo motors.

Explosion proof Hydraulic Tensioner Pumps

230/380V, 50/60Hz optional, Maximum working pressure 2000bar;

The power cord is 10 meters long, and the remote control handle cable is 10 meters long, which is equipped with a compact frame roller car to protect the pump body. It is lightweight and convenient for high-altitude operations on site;

Explosion-proof testing certification has been passed for all electrical accessories and certificates are provided;

It is applicable for explosion-proof applications in Zone 2, Zone 1, and Zone 0, widely used in explosion-proof environments such as dust, coal mines, petrochemicals, natural gas, etc;

Protection grade IP65, overall explosion-proof grade: ExdIIBT4. Other higher explosion-proof grades can also be selected: ExdIICT4/CT5/CT6, etc;

Model	Pressure (bar)	Flow (L/min)	Power Supply (V)	Power (kw)	Capacity (L)	Dimension (cm)	Weight (kg)

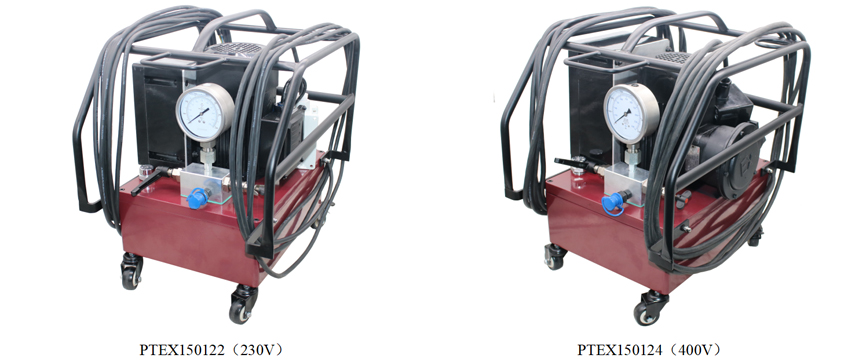

PTEX150122	1500	0.15-3	110/230	1.1	12	45×35×45	25.3

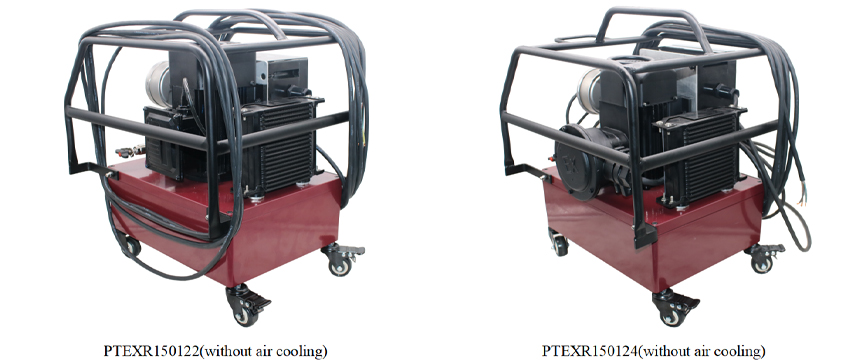

PTEXR150122	1500	0.15-3	110/230	1.1	12	45×35×45	28.1
PTEX150124	1500	0.15-3	380/400	1.1	12	45×35×45	27.3
PTEXR150124	1500	0.15-3	380/400	1.1	12	45×35×45	30.1

Pneumatic Hydraulic Tensioner Pumps

General purpose, high pressure air driven pump unit for products requiring up to 6000bar hydraulic pressure;

Compact, lightweight, rugged steel frame for protection and easy handling;

Prelubricated pump element, does not require an airline lubricator;

Easily adjustable output pressure control;

Integrated and protected easy to read glycerin filled gauge;

Safety relief valve limits output pressure;

Model	Pressure (bar)	Flow (L/min)	Capacity (L)	Pressure Ratio	Outlet Thread	Dimension (cm)	Weight (kg)
PTA15010	1500	0.1-3	9.5	255:1	G1/4"	424239	28
PTA20010	2000	0.1-3	9.5	255:1	G1/4"	424239	28
PTA28010	2800	0.1-3	9.5	400:1	9/16"-18UNF	424239	32
PTA40010	4000	0.1-3	9.5	500:1	9/16"-18UNF	454549	40
PTA64010	6000	0.1-3	9.5	800:1	9/16"-18UNF	454549	45
The above are standard products. For other special requirements such as power, flow rate, and higher pressure, please contact the local authorized agency or our technical engineer;

Manual Hydraulic Tensioner Pumps

Pressure Range - 0 to 3000 bar;

Two-speed design reduces handle effort by 40%;

Convenient fill port enables pumps to be filled in a horizontal or vertical position;

Large valve knob gives added control for slowly metering loads down;

Extremely lightweight, easy to transport with the aluminum body design;

Model	Pump Type	Pressure (bar)	Capacity (L)	Oil Discharge Per Stroke（cm³）		Outlet Thread	Dimension (cm)	Weight (kg)
Model	Pump Type	Pressure (bar)	Capacity (L)	Low Pressure	High Pressure	Outlet Thread	Dimension (cm)	Weight (kg)
PTM1602	Single Acting	1600	1.6	32	1.5	G1/4"	601519	6.8
PTM2002	Single Acting	2000	1.6	32	1.3	G1/4"	601519	6.8
PTM2802	Single Acting	2800	2.0	32	1.25	G1/4"	601519	7.0
PTM3002	Single Acting	3000	2.0	32	0.7	9/16"-18UNF	601519	7.0
