Hydraulic Cylinder Pumps

Related Introduction

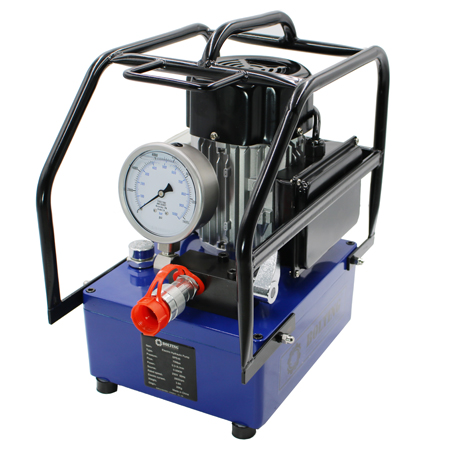

Electric Hydraulic Cylinder Pumps

Electric hydraulic pumps are pray coating, anti-corrosion, pollution-resistant, durable;

Lightweight and compact design make it easy to be moved;

Double speed pump design, with the high flow in low pressure;

The actuator can be fast moved on no-load status;

Internal high and low pressure automatic reversing valve and external adjustable pressure valve to make it easy to calibrate the working pressure and avoid the over load;

Motor starter has the function of preventing overload, overheat and leakage. The pump can be matched with both Double Acting and Single Acting cylinders;

Choosing the Solenoid Valve valve electric hydraulic pump, remote operation can be realized;

Model	Pump Type	Valve Type	Pressure (bar)	Flow (L/min)	Power Supply (V)	Power (kw)	Capacity (L)	Dimension (cm)	Weight (kg)
PHM55	Single Acting	Manual Valve	700	0.5-3	110/230	0.55	6	333035	18.3
PHM55D	Double Acting	Manual Valve	700	0.5-3	110/230	0.55	6	333035	19
PHM110	Single Acting	Manual Valve	700	0.8-4	110/230	1.1	8/12/20/33	433345	23.5
PHM110D	Double Acting	Manual Valve	700	0.8-4	110/230	1.1	8/12/20/33	333035	20
PHM150D	Double Acting	Manual Valve	700	1.0-5	230/400	1.5	8/12/20/33	533352	45
PHE150D	Double Acting	Solenoid Valve	700	1.0-5	230/400	1.5	8/12/20/33	533352	50
PHM220D	Double Acting	Manual Valve	700	1.0-6.5	230/400	2.2	20/33/60	533760	55
PHE220D	Double Acting	Solenoid Valve	700	1.0-6.5	230/400	2.2	20/33/60	533760	60
PHE300D	Double Acting	Solenoid Valve	700	1.6-9	400	3.0	20/33/60	81.55580	80
PHE450D	Double Acting	Solenoid Valve	700	2-12	400	4.5	20/33/60	81.55580	90
PEH550D	Double Acting	Solenoid Valve	700	3-15	400	5.5	20/33/60	81.55580	100
The above are standard products. For other special requirements such as power, flow rate, and higher pressure, please contact the local authorized agency or our technical engineer;

Pneumatic Hydraulic Cylinder Pumps

Working pressure 700 bar;

Compact, lightweight & powerful;

Standard 7 bar air input pressure required;

Choice of 2-way or 4-way control valves;

Internal safety overload valve;

Reservoir oil sight level gauge;

Standard oil reservoir capacities up to 10 litres;

Model	Pump Type	Pressure (bar)	Flow (L/min)	Air Consumption（L/min）	Capacity (L)	Dimension (cm)	Weight (kg)
SPA701	Single Acting	700	0.15-1.16	255	1.7	261322	8
SPA701D	Double Acting	700	0.15-1.16	255	1.7	261322	8
SPA701R	Double Acting	700	0.15-1.16	255	1.7	261322	8
SPA702	Single Acting	700	0.15-3	510	4.5	332120	13.9
SPA702D	Double Acting	700	0.15-3	510	4.5	332120	13.9
SPA706	Single Acting	700	0.5-5	2000	8/12/20/33	332120	13.9
SPA706D	Double Acting	700	0.5-5	2000	8/12/20/33	332120	13.9

Manual Valve Hydraulic Cylinder Pump

All Manual Valve pumps have two major features - sturdy and durable structure and low handle operating force;

Aluminum alloy structure (AHP701-705), with a fully grip and anti loosening design for oil return torque, truly suitable for frequent daily use and industrial grade requirements;

The 700bar ultra-high pressure model has a lightweight design that better meets the needs of users;

Model	Pump Type	Pressure (bar)	Capacity (L)	Oil Discharge Per Stroke（cm³）		Outlet Thread	Dimension (cm)	Weight (kg)
Model	Pump Type	Pressure (bar)	Capacity (L)	Low Pressure	High Pressure	Outlet Thread	Dimension (cm)	Weight (kg)
AHP701	Single Acting	700	0.2	12.9	1	3/8"-NPT	342015	2.3
AHP702	Single Acting	700	0.75	12.9	2.3	3/8"-NPT	62.51719	3.5
AHP703	Single Acting	700	1.6	12.9	2.3	3/8"-NPT	751719	6
AHP703D	Double Acting	700	1.6	12.9	2.3	3/8"-NPT	751719	7
AHP705	Single Acting	700	2.8	12.9	2.3	3/8"-NPT	601419	16.5
AHP705D	Double Acting	700	2.8	12.9	2.3	3/8"-NPT	601419	17
AHP706	Single Acting	700	7.45	126	4.75	3/8"-NPT	67.53227	27
AHP706D	Double Acting	700	7.45	126	4.75	3/8"-NPT	67.53227	27.7
