Model
|
Across Flat B (mm)
|
Across B (Inch)
|
Load Limits (N.m)
|

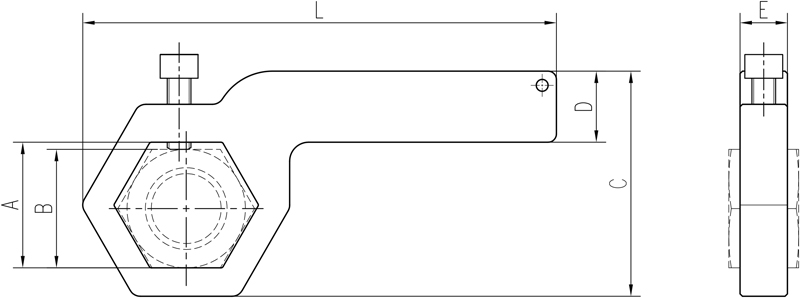

Dimension(mm)
|
|
|
E |
L |
||||
|
BW30 |
30 |
1-1/4" |
3254 |
16 |
150 |
|
BW36 |
36 |
1-7/16" |
3390 |
16 |
150 |
|
BW41 |
41 |
1-5/8" |
4745 |
18 |
185 |
|
BW46 |
46 |
1-13/16" |
4745 |
18 |
185 |
|
BW50 |
50 |
2" |
5559 |
20 |
200 |
|
BW55 |
55 |
37331 |
5694 |
20 |
200 |
|
BW57 |
57 |
2-1/4" |
5830 |
20 |
200 |
|
BW60 |
60 |
2-3/8" |
5830 |
22 |
250 |
|
BW65 |
65 |
2-9/16" |
6169 |
22 |
250 |
|
BW70 |
70 |
2-3/4" |
7592 |
25 |
300 |
|
BW75 |
75 |
2-15/16" |
8542 |
25 |
300 |
|
BW80 |
80 |
3-1/8" |
9491 |
28 |
330 |
|
BW85 |
85 |
3-1/2" |
9762 |
28 |
330 |
|
BW90 |
90 |
3-11/16" |
9897 |
30 |
350 |
|
BW95 |
95 |
3-7/8" |
12202 |
30 |
350 |
|
BW100 |
100 |
4" |
32539 |
35 |
400 |
|
BW105 |
105 |
4-1/8" |
32539 |
35 |
400 |
|
BW110 |
110 |
4-1/4" |
32539 |
40 |
450 |
|
BW115 |
115 |
4-1/2" |
36607 |
40 |
450 |
|
BW120 |
120 |
4-5/8" |
36607 |
45 |
500 |
|
BW130 |
130 |
5" |
36607 |
45 |
500 |
